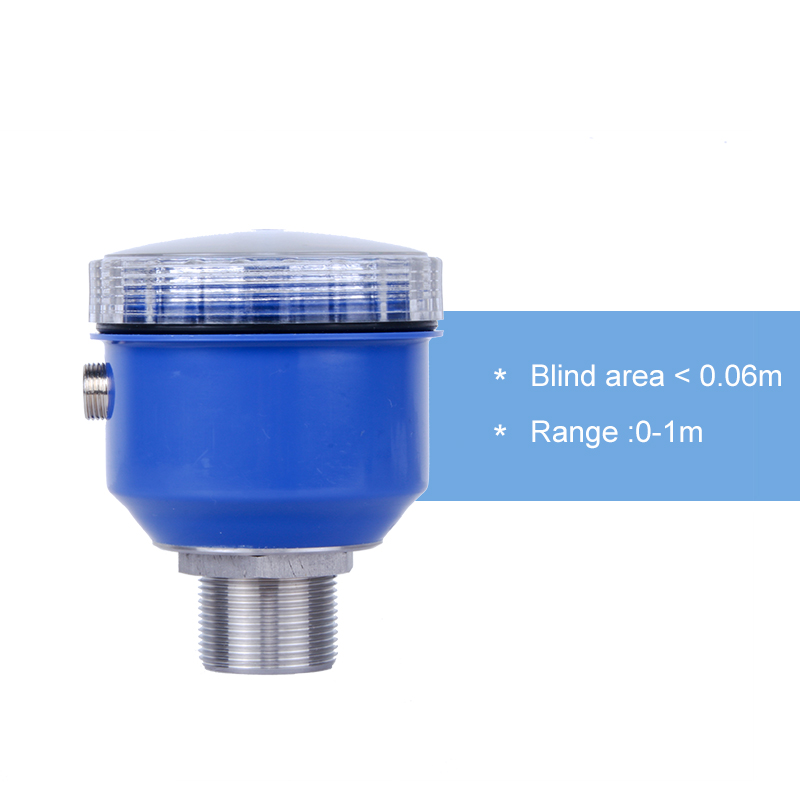

SUP-ZMP Ultrasonic level transmitter

SUP-ZMP Ultrasonic level transmitter is microprocessor controlled digital level meter. Ultrasonic pulses generated by the sensor (transducer) emitted in the measurement, the surface acoustic wave after reflection by the liquid receiving same sensor or an ultrasonic receiver, by a piezoelectric crystal or a magnetostrictive device into an electrical signal by transmitting and receiving sound waves to calculate the time between the sensor surface to the distance measured liquid. Features Measure range:0 ~ 1m;0 ~ 2mBlind zone:<0.06-0.15m(different for range)Accuracy:0.5%F.SPower supply: 12-24VDC

Products Details

  • Specification
 Product Ultrasonic level transmitter
 Model SUP-ZMP
 Measure range 0-1m, 0-2m
 Blind zone <0.06-0.15m(different for range)
 Accuracy 0.5%
 Display OLED
 Output 4-20mA, RS485, Relay
 Power supply 12-24VDC
 Power consumption <1.5W
 Protection degree IP65

  • Introduction
  • Application
