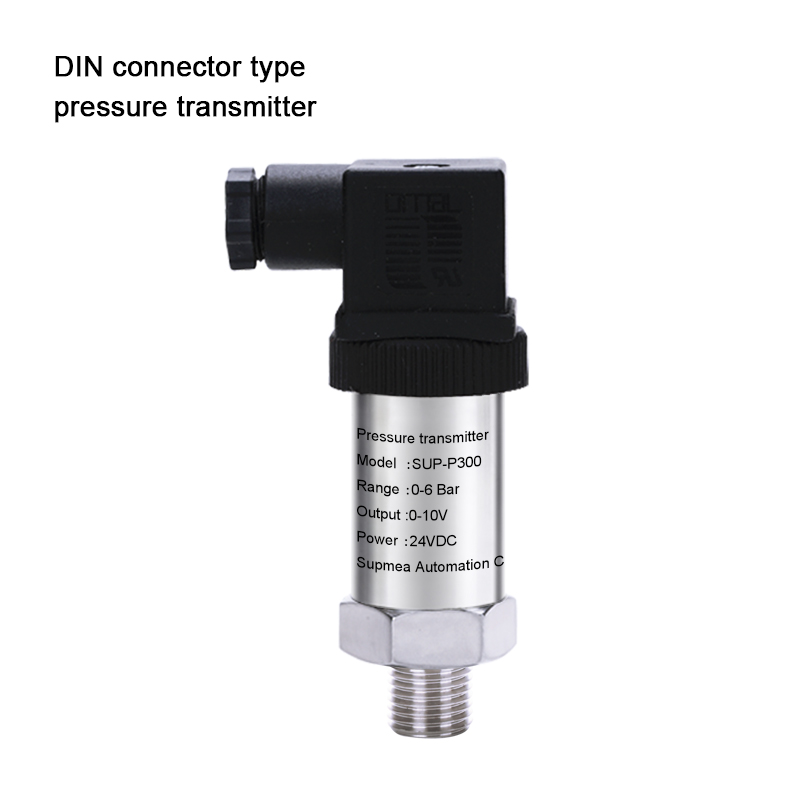

SUP-P300 Pressure transmitter with compact size for universal use

SUP-P300 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. P300 series is widely applied in pressure measurement for aviation, aerospace, automobile, medical treatment equipment, HVAC etc. Features Range:-0.1...0...60MPaResolution:0.5% F.S; 0.3%F.S optionalOutput signal: 4...20mA; 1...5V; 0...10V; 0...5V; RS485Installation: ThreadPower supply:24VDC (9 ~ 36V)

Products Details

Specification

 Product Pressure transmitter
 Model SUP-P300
 Measure range -0.1…0/0.01…60Mpa
 Pressure type Gauge pressure, adiabatic pressure and sealed pressure
 Accuracy 0.5% F.S; 0.2%F.S,0.25%F.S, optional
 Output signal 4...20mA; 1...5V; 0...10V; 0...5V; RS485
 Temperature compensation -10...70 ℃
 Working temperature -20...85 ℃
 Medium temperature -20...85 ℃
 Storage temperature -40...85 ℃
 Overload pressure 0.035...10MPa(150%FS)10...60MPa(125%FS)
 Long-term stability ± 0.2%FS/year
 Power supply 10-32V (4...20mA);12-32V (0...10V);8-32V (RS485)

Introduction

SUP-P300 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. P300 series is widely applied in pressure measurement for aviation, aerospace, automobile, medical treatment equipment, HVAC etc 10 bar pressure transmitter pressure transmitter
