SUP-ST500 Temperature transmitter programmable

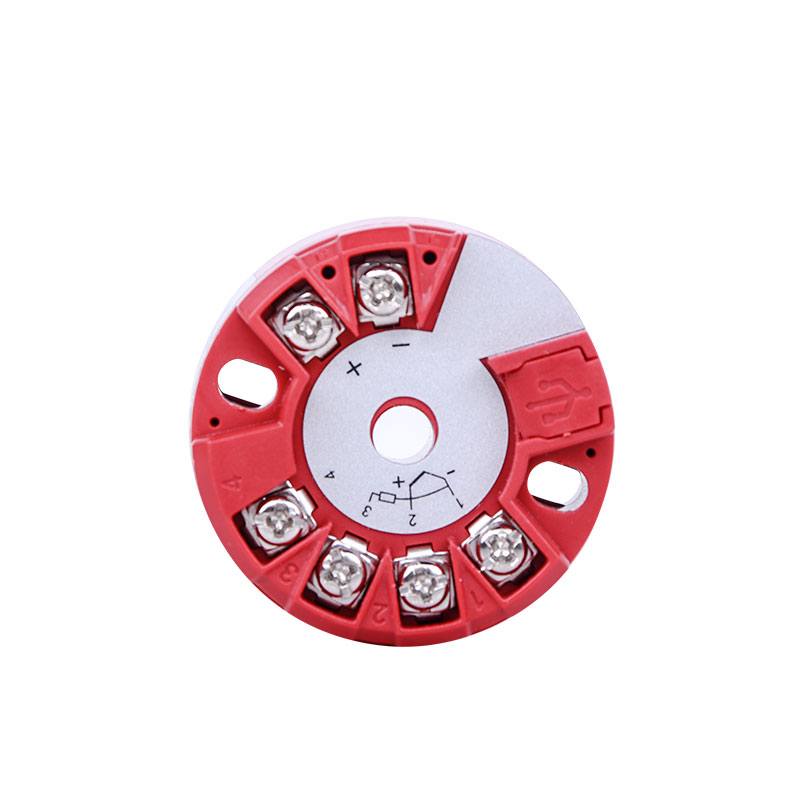

SUP-ST500 Head Mounted Smart Temperature transmitter can be used with multiple sensor type [Resistance Thermometer(RTD),Thermocouple (TC)] inputs, is simple to install with improved measurement accuracy over wire-direct solutions. Features Input signal: Resistance temperature detector (RTD), thermocouple (TC), and linear resistance.Output:4-20mAPower supply: DC12-40VResponse time:Reach to 90% of the final value for 1s

Products Details

  • Specification
Input
Input signal Resistance temperature detector (RTD),thermocouple (TC), and linear resistance.
Cold-junction compensation temperature scope -20~60℃
Compensation precision ±1℃
Output
Output signal 4-20mA
Load resistance RL≤(Ue-12)/0.021
Output current of upper and lower limit overflow alarm IH=21mA, IL=3.8mA
Output current of input disconnection alarm 21mA
Power supply
Supply voltage DC12-40V
Other parameters
Transmission precision (20℃) 0.1%FS
Temperature drift 0.01%FS/℃
Response time Reach to 90% of the final value for 1s
Used environmental temperature -40~80℃
Storage temperature -40~100℃
Condensation Allowable
Protection level IP00; IP66 (installation)
Electromagnetic compatibility Conform to GB/T18268 industrial equipmentapplication requirements(IEC 61326-1)
Input Type Table
Model Type Measurement scope Minimum measurement scope
Resistance temperaturedetector (RTD) Pt100 -200~850℃ 10℃
Cu50 -50~150℃ 10℃
Thermocouple (TC) B 400~1820℃ 500℃
E -100~1000℃ 50℃
J -100~1200℃ 50℃
K -180~1372℃ 50℃
N -180~1300℃ 50℃
R -50~1768℃ 500℃
S -50~1768℃ 500℃
T -200~400℃ 50℃
Wre3-25 0~2315℃ 500℃
Wre5-26 0~2310℃ 500℃
  • Product size

  • Product wiring
Note: no 24V power supply is required when using the V8 serial port programming line
  • Software
SUP-ST500 temperature transmitter supports input signal adjustment. If you need to adjust the input signal, please let us know and we will give you software.   With the software, you can adjust the temperature type, such as PT100, Cu50, R, T, K etc; input temperature range.
