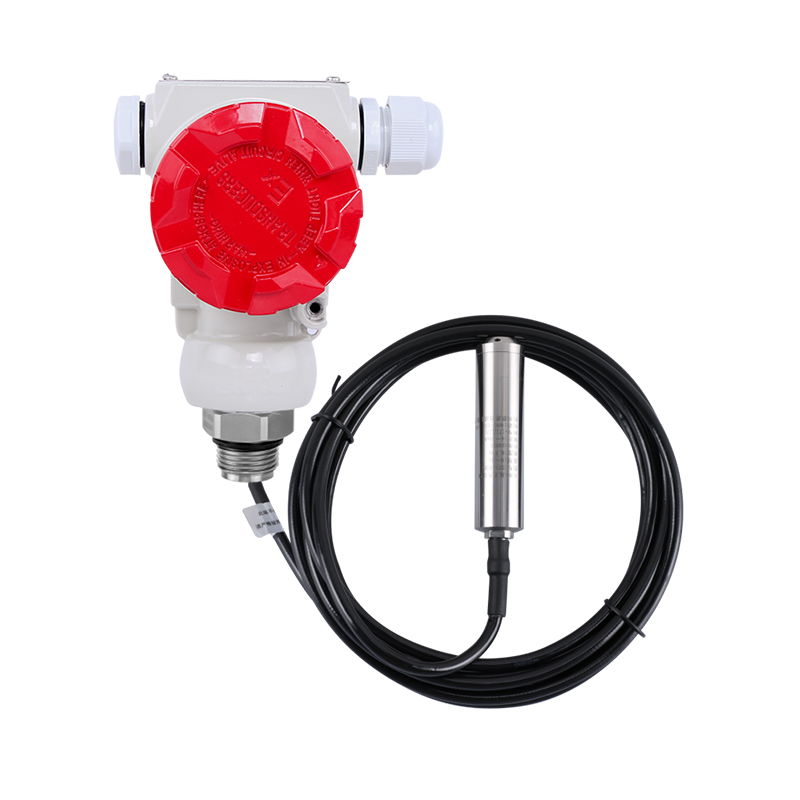

SUP-PX261 Submersible level meter

SUP-PX261 series water level meter are completely sealed for submersion in liquid, can be used to measure water level, well depth, groundwater leverl and so on, common accracy is 0.5%FS,with voltage or 4-20mA output signals Features Range:0 ~ 100mResolution:0.5% F.SOutput signal: 4~20mA; 0~10V; 0~5VPower supply:24VDC; 12VDCTel.: +86 15867127446 (WhatApp)Email : info@Sinomeasure.com

Products Details

  • Advantages
Compact shape, accurate measurement. According to fluid mechanics, the use of cylindrical arc shape, the effective media to the impact of the probe down to reduce the impact of probe shaking on the measurement stability Multiple waterproof and dustproof. With dispaly function, support on-site liquid level data monitoring without supporting liquid level detector.
  • Specification
Product Level transmitter
 Model SUP-PX261
 Measure range 0 ~ 1m; 0 ~ 3m; 0 ~ 5m; 0 ~ 10m (Max 100m)
 Indication  resolution 0.5%
 Ambient temperature -10 ~ 85 ℃
 Output signal 4-20mA
 Pressure overload 150%FS
 Power supply 24VDC; 12VDC; Custom (9-32V)
 Medium temperature -40 ℃ ~ 60 ℃
 Overall material Core: 316L; Shell: 304 material
