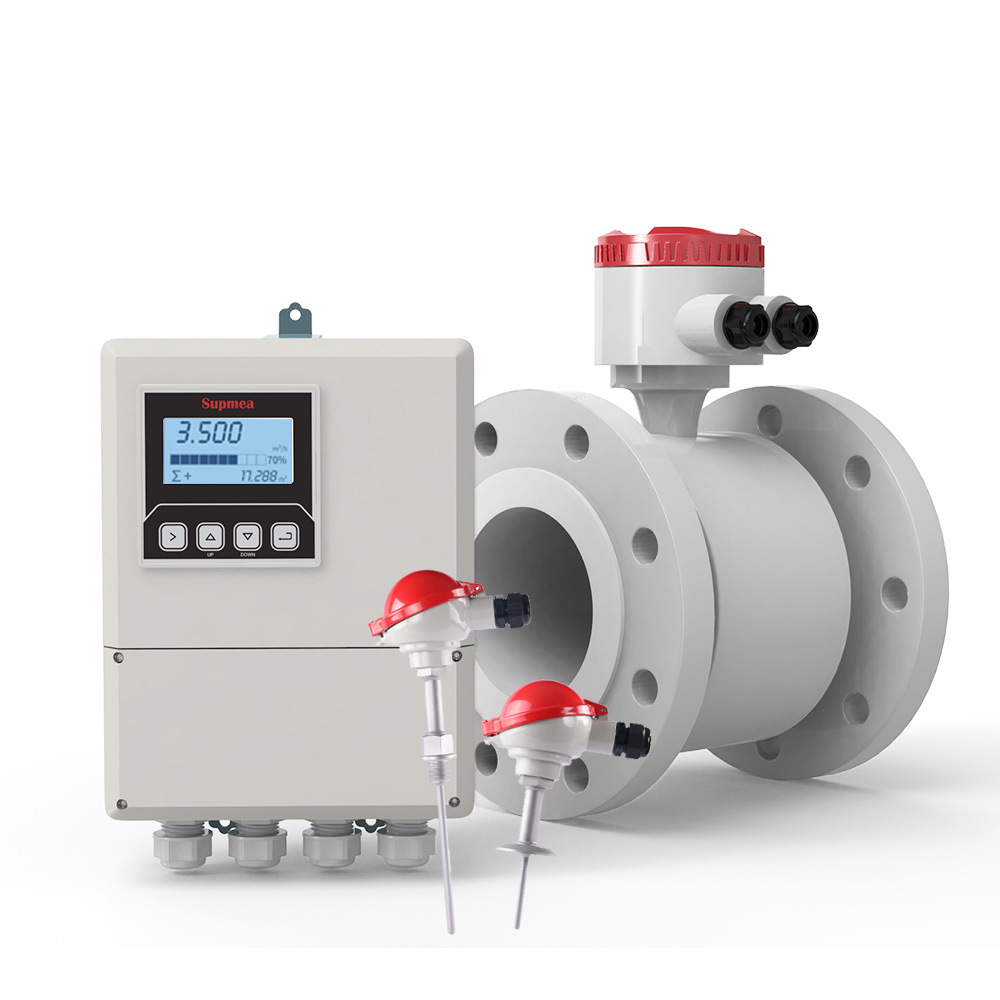

SUP-LDGR Electromagnetic BTU meter

Sinomeasure electromagnetic BTU meters accurately measure the thermal energy consumed by chilled water in British thermal units (BTU), which is a basic indicator for measuring thermal energy in commercial and residential buildings. BTU meters are usually used in commercial and industrial as well as office buildings for chilled water systems, HVAC, heating systems, etc. Features
  • Accuracy:±2.5%
  • Electric conductivity:>50μS/cm
  • Flange:DN15…1000
  • Ingress protection:IP65/ IP68

Products Details

  • Specification
 Product  Electromagnetic BTU meter
 Model  SUP-LDGR
 Diameter nominal  DN15 ~DN1000
 Accuracy  ±2.5%,(flowrate=1m/s)
 Working pressure  1.6MPa
 Liner material  PFA, F46, Neoprene, PTFE, FEP
 Electrode material  Stainless steel SUS316, Hastelloy C, Titanium,
 Tantalum, Platinum-iridium
 Medium temperature  Integral type: -10℃~80℃
 Split type: -25℃~180℃
 Power supply  100-240VAC,50/60Hz, 22VDC—26VDC
 Electrical conductivity  > 50μS/cm
 Ingress protection  IP65, IP68

  • Principle
SUP-LDGR electromagnetic BTU meter(Heat meter) operating principle: Hot (cold) water supplied by a heat source flows into a heat exchange system at a high (low) temperature(a radiator, heat exchanger, or complex system consisting of them),Outflow at low (high) temperature, in which heat is released or absorbed to the user through heat exchange (note: this process includes energy exchange between heating system and cooling system).When water flow through the heat exchange system, according to the flow sensor of flow and matching the temperature of the sensor is given for the return water temperature, and flow through time, through the calculation of the calculator and display the system heat release or absorption. Q =   ∫(τ0→τ1) qm × Δh ×dτ =∫(τ0→τ1) ρ×qv×∆h ×dτ Q :Heat released or absorbed by the system,JorkWh; qm:Mass flow of water through a heat meter,kg/h; qv:Volume flow of water through the heat meter,m3/h; ρ:The density of water flowing through the heat meter,kg/ m3; ∆h:The difference in enthalpy between inlet and outlet temperatures of the heat exchange system,J/kg; τ:time,h. Noted: the product strictly prohibited to be used in explosion-proof occasions.
