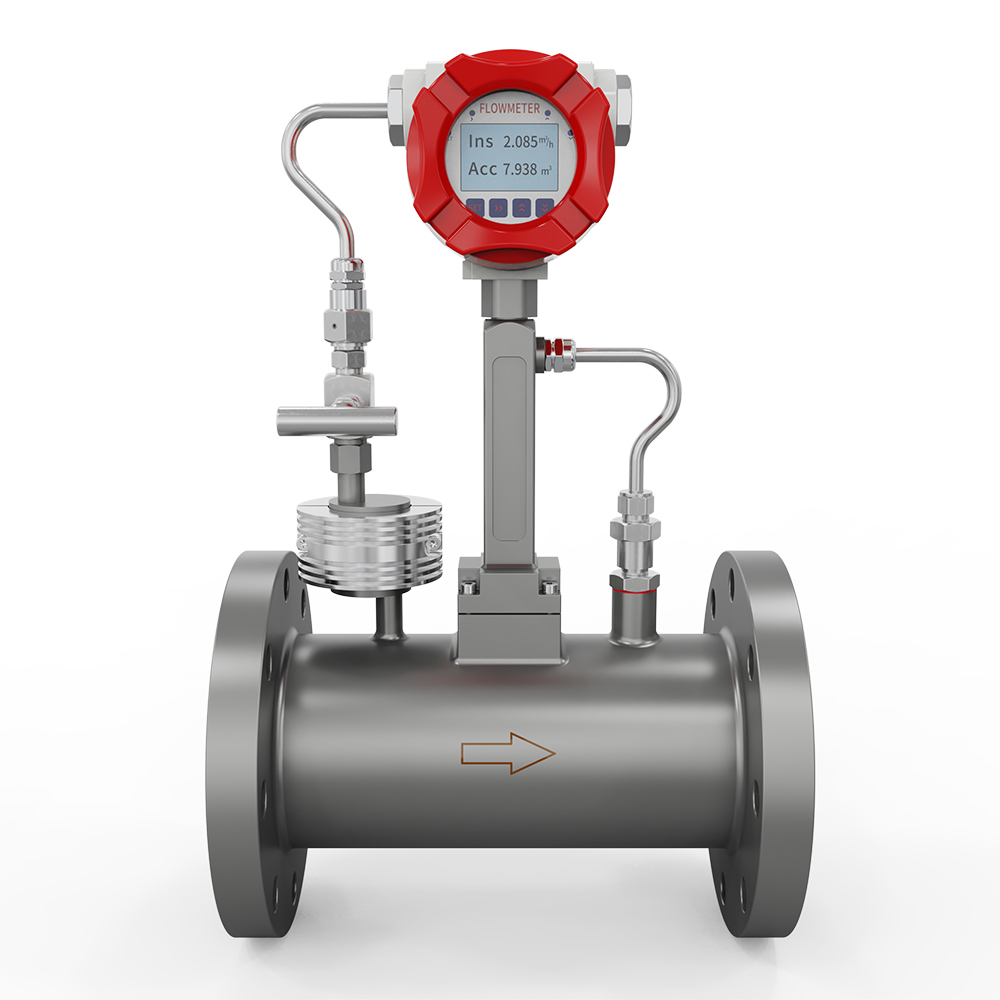

• Measuring principle

  Vortex flow meter work on the principle of generated vortex and relation between vortex and flow by theory of Karman and Strouhal, which specialize in measurement of steam, gas and liquid of lower viscosity. As shown in below illustration, medium flows through bluff body and then vortex is generated, vortices are alternately formed on both sides with opposite directions of rotation, Vortices frequency is directly proportional to medium velocity. Through numbers of vortices that is measured by sensor head, medium velocity is calculated, plus flow meter diameter, final volume flow come out.

• Installation

  Wafer connection: DN10-DN500(priority PN2.5MPa) Flange connection: DN10-DN80(priority PN2.5MPa）DN100-DN200(priority PN1.6MPa）DN250-DN500(priority PN1.0MPa）

• Accuracy

1.5%, 1.0%

• Range Ratio

8:1

• Medium Temperature

-20°C ~ +150°C、-20°C ~ +260°C、-20°C ~ +320°C、-20°C ~ +420°C

• Power Supply

24VDC±5% Li battery(3.6VDC)

• Output signal

4-20mA Frequency RS485 communication (Modbus RTU)

• Ingress protection

IP65

• Body Materials

  Stainless stell

• Display

  128*64 dot matrix LCD

  Noted: the product strictly prohibited to be used in explosion-proof occasions.
