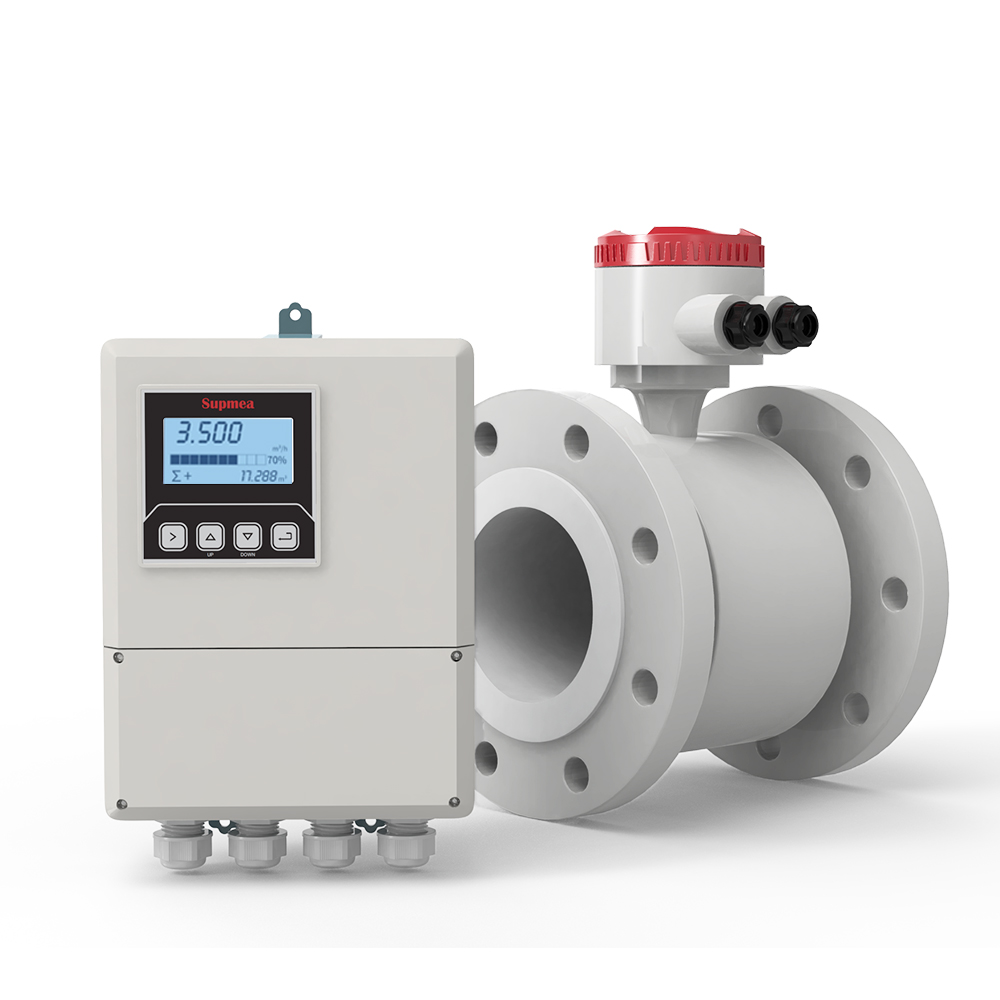

SUP-LDG Remote type electromagnetic flowmeter

Electromagnetic flowmeter is only applicable to measure the flow of conductive liquid, which is wide used in water supply, sewage water measuring, industry chemical measuring etc. The remote type is with high IP protection class and can be installed in different locations for the transmitter and converter. Output signal can pulse,4-20mA or with RS485 communication. Features
  • Accuracy:±0.5%(Flow speed > 1m/s)
  • Reliably:0.15%
  • Electric conductivity: Water: Min. 20μS/cm
Other liquid:Min.5μS/cm
  • Flange:ANSI/JIS/DIN DN15…1000
  • Ingress protection:IP68

Products Details

  • Specification
 Product  Electromagnetic flowmeter
 Model  SUP-LDG
 Diameter nominal  DN15~DN1000
 Nominal pressure  0.6~4.0MPa
 Accuracy  ±0.5%,±2mm/s(flowrate<1m/s)
 Liner material  PFA,F46,Neoprene,PTFE,FEP
 Electrode material  Stainless steel SUS316, Hastelloy C, Titanium,
 Tantalum Platinum-iridium
 Medium temperature  Integral type: -10℃~80℃
 Split type: -25℃~180℃
 Power supply  100-240VAC,50/60Hz, 22VDC—26VDC
 Ambient Temperature  -10℃~60℃
 Electrical conductivity  Water 20μS/cm other medium 5μS/cm
 Structure type  Tegral type, split type
 Ingress protection  IP68
 Product standard  JB/T 9248-1999 Electormagnetic Flowmeter

  • Measuring principle
Mag meter works based on Faraday's law, and measure conductive medium with conductivity more than 5 μs/cm and flow range from 0.2 to 15 m/s. An Electromagnetic Flowmeter is a volumetric Flowmeter that measures the flow velocity of a liquid through a pipe.  The measurement principle of magnetic flowmeters can be described as follows: when the liquid goes through the pipe at the flow rate of v with a diameter D, within which a magnetic flux density of B is created by an exciting coil, the following electromotive E is generated in proportion to flow speed v: E=K×B×V×D
            Where: E-Induced electromotive force K-Meter constant B-Magnetic induction density V-Average flow speed in cross-section of measuring tube D-Inner diameter of measuring tube

  • Introduction
Noted: the product strictly prohibited to be used in explosion-proof occasions.
  • Application
Electromagnetic flowmeters have been used throughout industries for more than 60 years. These meters are applicable for all conductive liquids, such as: Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc
