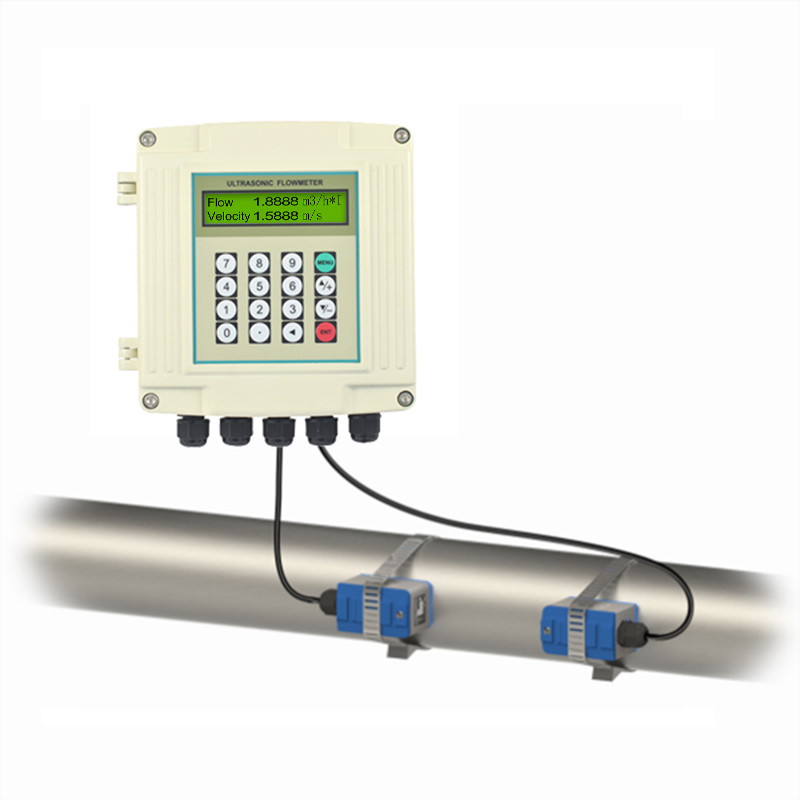

SUP-1158S Wall mounted ultrasonic flowmeter

SUP-1158S Wall mounted clamp on ultrasonic flow meter uses advance circuit design,coupled with excellent hardware designed in English and can be switched surfaces.It is easy to operate and with stable performance. Features
  • Pipe diameter:DN32-DN6000
  • Accuracy: ±1%
  • Power supply: 10~36VDC/1A
  • Output: 4~20mA, relay, RS485
Tel.: +86 15867127446 (WhatApp)Email : info@Sinomeasure.com

Products Details

Specification
 Product Wall-mounted ultrasonic flowmeter
 Model SUP-1158S
 Pipe Size DN32-DN6000
 Accuracy ±1%
 Signal output 1 way 4-20mA output
1 way OCT pulse output
1 way replay output
 Interface RS485, support MODBUS
 Liquid Types Virtually all liquids
 Working Temperature Convertor: -20~60℃;Flow Transducer:-30~160℃
 Working humidity Convertor:85%RH
 Power Supply DC8~36V or AC85~264V(optional)
 Date Logger Built-in data logger can store over 2000 lines of data
 Case Material ABS
 Dimension 170*180*56mm(Convertor)
  Introduction SUP-1158S Wall-mounted Ultrasonic flowmeter uses advanced circuit design coupled with excellent hardware designed in English for liquid flow detection and comparison testing in pipes. It has the characteristics of simple operation, convenient installation, stable performance.
