• Specification

Product	Economic 3-digit Display Fuzzy PID Temperature Controller
Model	SUP-130T
Dimension	C. 96*96*110mm D. 96*48*110mm E. 48*96*110mm F. 72*72*110mm H. 48*48*110mm
Measurement accuracy	±0.3%FS
Transmission output	Analog output----4-20mA(RL≤500Ω)、1-5v（RL≥250kΩ）
Alarm Output	With upper and lower limit alarm function, with alarm return difference setting；Relay contact capacity： AC125V/0.5A(small)DC24V/0.5A(small)（Resistive load） AC220V/2A(big)DC24V/2A(big)（Resistive load） Note: When the load exceeds the relay contact capacity, please do not directly carry the load
Power supply	AC/DC100~240V (AC/50-60Hz) Power consumption≤5W DC 12~36V  Power consumption≤3W
Use environment	Operating temperature（-10~50℃）No condensation, no icing

• Introduction

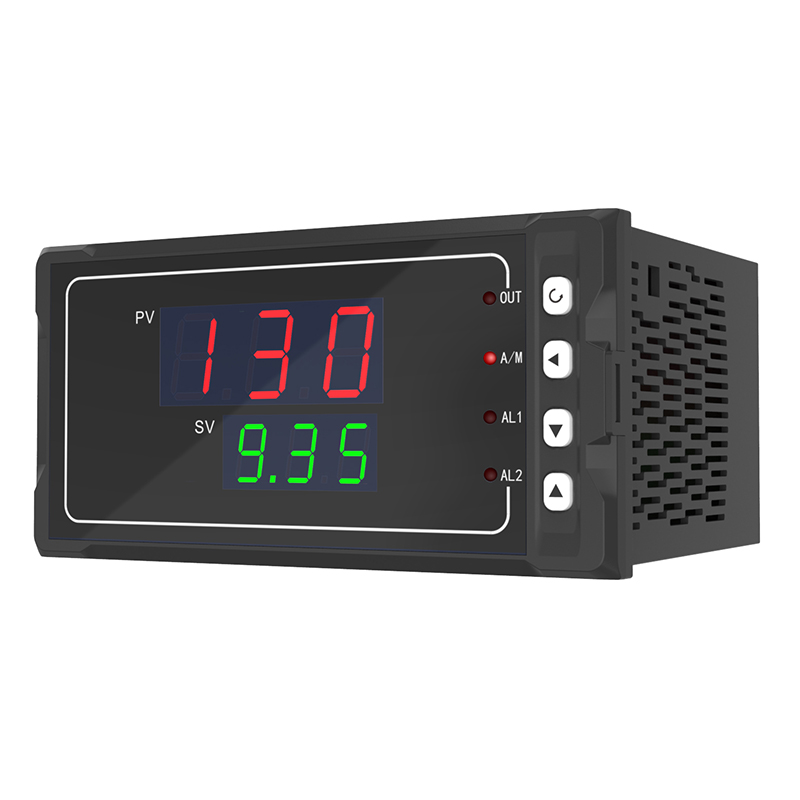

  Economic 3-digit Display Fuzzy PID Temperature Controller is in modular structure, easily operable, cost-effective, applicable in light industry machinery, ovens, laboratory equipment, heating/cooling and other objects in the temperature range of 0~999 °C. The instrument displays with dual row 3-digit numeric tube, with a variety of RTD/TC input signal types optional with an accuracy of 0.3%; 5 sizes optional, supporting 2-way alarm functions, with analogue control output or switch control output function, under accurate control without overshoot. Optical isolation for input terminal, output terminal, a power supply terminal, 100-240V AC/DC or 12-36V DC switching power supply, standard snap-on installation, ambient temperature at 0-50 °C, and the relative humidity of 5-85% RH (no condensation). Terminal Assignments and Dimensions (1) PV display window (measured value) (2) SV display window In measurement state, it displays the control target value; In parameters setting state, it displays the setpoint. (3) The first alarm (AL1) and the second alarm (AL2) indicators, manual light (A/M) and output light (OUT) (4) Confirm key (5) Shift key (6) Down key (7) Up key   High brightness display Dual-screen three-digit LED digital display PC mask High transparency, smooth surface Good aging resistance Touch button Use high-quality silicone buttons Sensitive operation and long service life Good touch and good recovery Ventilation and heat dissipation Open holes on both sides, convection ventilation to ensure long-term high temperature operation of the instrument Limit cover protection Wiring diagram----to ensure correct wiring Wiring cover --- to ensure wiring safety Embedded installation Dial hole, standard size Fastened by buckle, easy to install Input signal type list:

Graduation Number Pn	Signal type	Measure range	Graduation Number Pn	Signal type	Measure range
0	TC B	100~999℃	5	TC J	0～999℃
1	TC S	0～999℃	6	TC R	0～999℃
2	TC K	0～999℃	7	TC N	0～999℃
3	TC E	0～999℃	11	RTD Cu50	-50～150℃
4	TC T	0～400℃	14	RTD Pt100	-199～650℃
