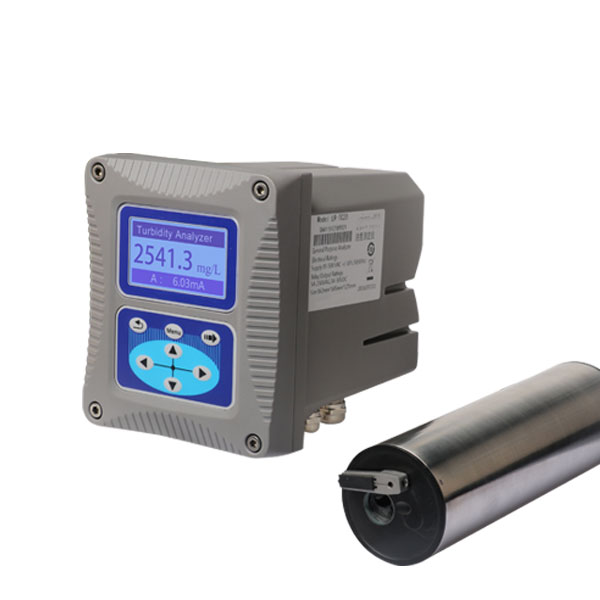

SUP-PTU200 Turbidity meter

SUP-PTU200 turbidity meter based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of turbidity. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of turbidity value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple. Features Range: 0.01-100 NTU 、0.01-4000 NTUResolution:Less than ± 2% of the measured valuePressure range: ≤0.4MPaPower supply: AC220V±10%; 50Hz/60Hz

Products Details

  • Specification
 Product Turbidity meter
  Model SUP-PTU200
 Display 128 * 64 dot matrix LCD with LED backlight,
which can be operated under the direct sunlight
 Power supply AC:AC220V, 50Hz, 5W;  DC:DC24V
 Output Three-way analog output 4-20mA,
Note: the maximum load is 500 ohms
 Relay Three-way relay can be set up
 Digital communication MODBUS RS485 communication function, which can transmit real-time measurements
 Warranty period 1 year
 Material of outside shell Lower casing:Aluminum with powder covering
cover:PA66+GF25+FR
 Ingress protection IP65
 Size 145*125*162mm  L*W*H
 Weight 1.3KG

  • Introduction
SUP-PTU200 Turbidity Analyzer based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of turbidity. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of turbidity value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple.
  • Application

  • Description
